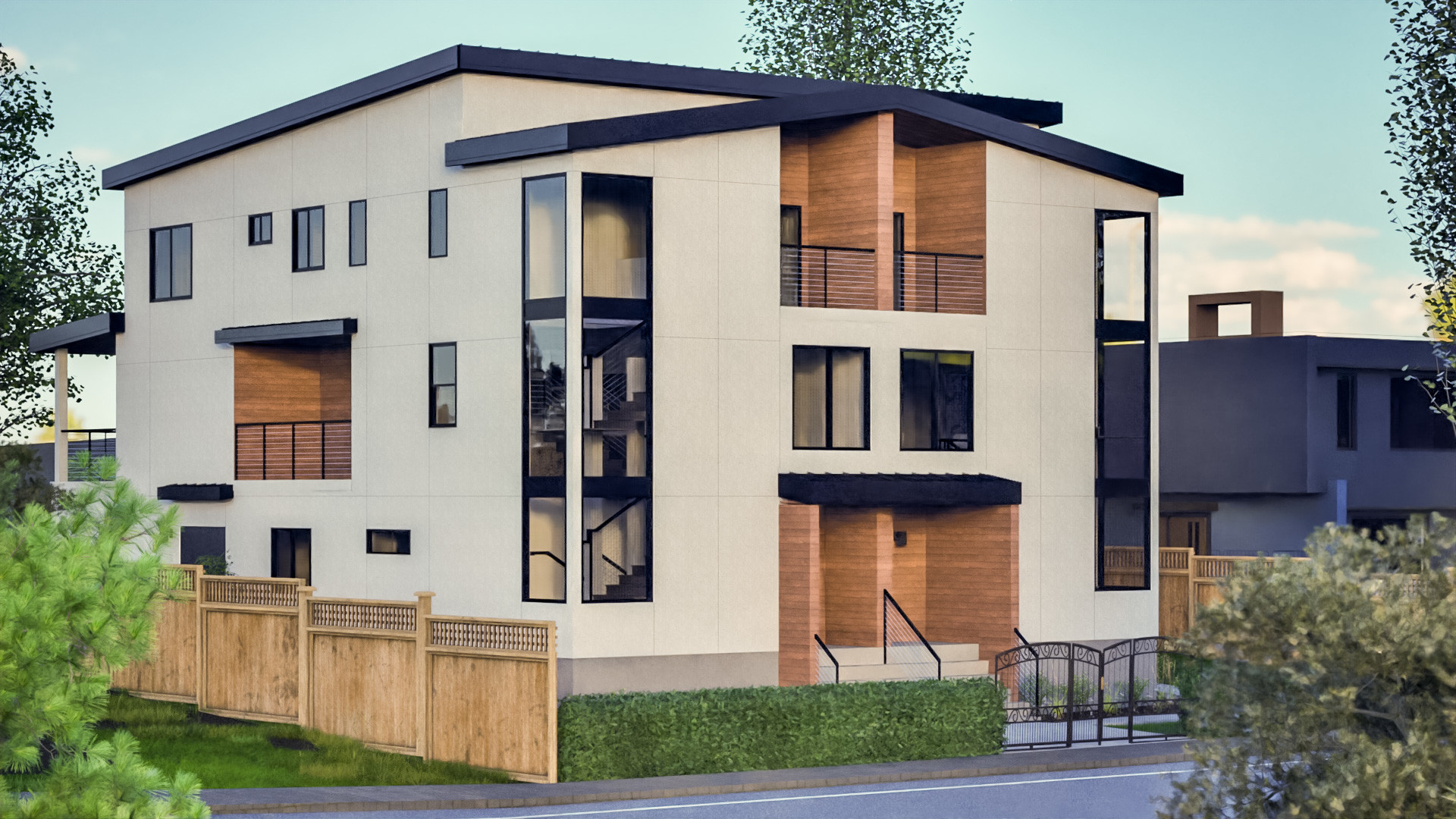

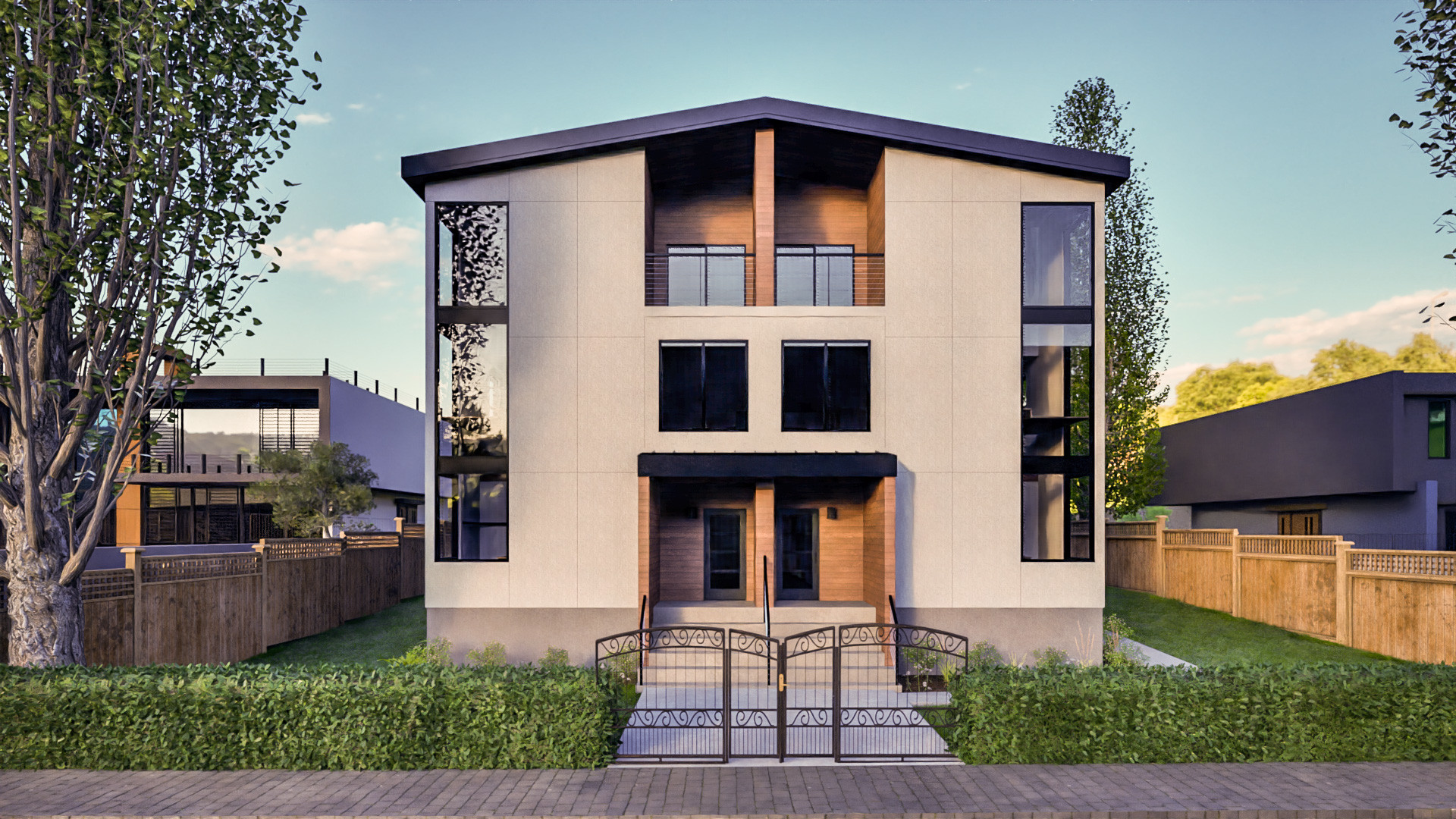

Modern two-story beige house with black trim, front steps, and a gated hedge-lined yard.

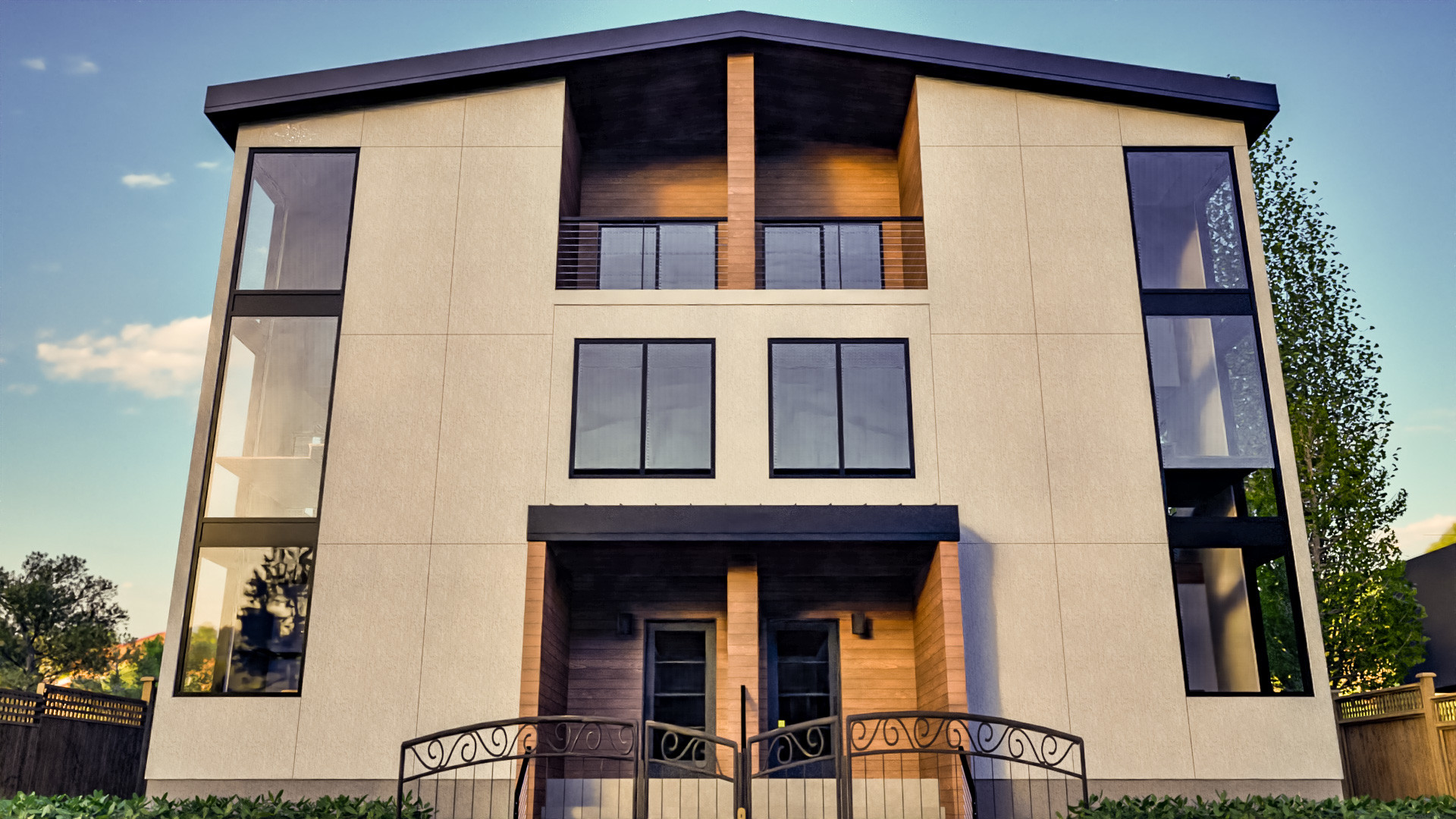

Modern beige, three-story house with large glass windows and wooden accents, iron gate in front.

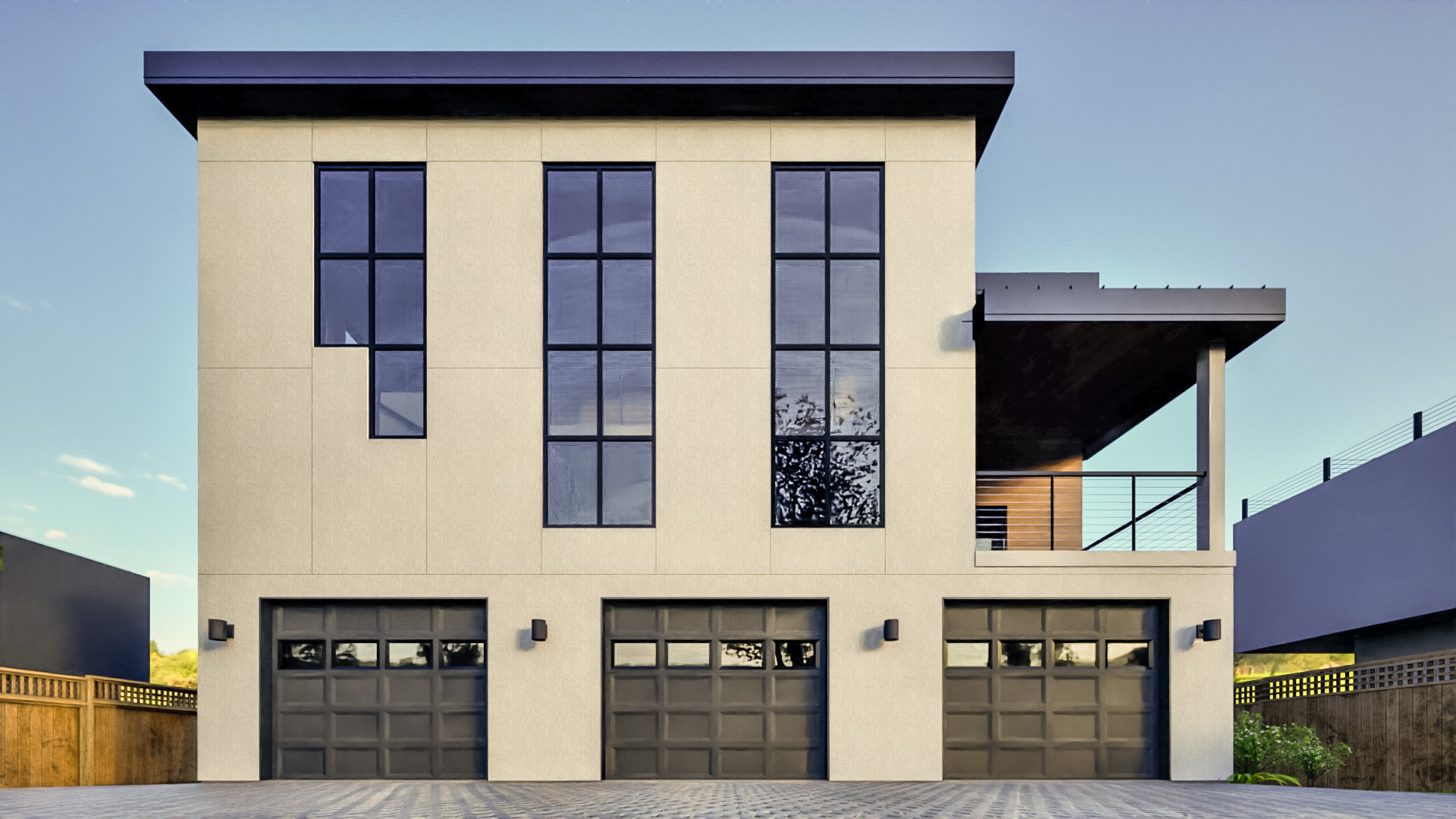

Modern beige facade with tall vertical windows and three large gray garage doors at ground level, a contemporary home.

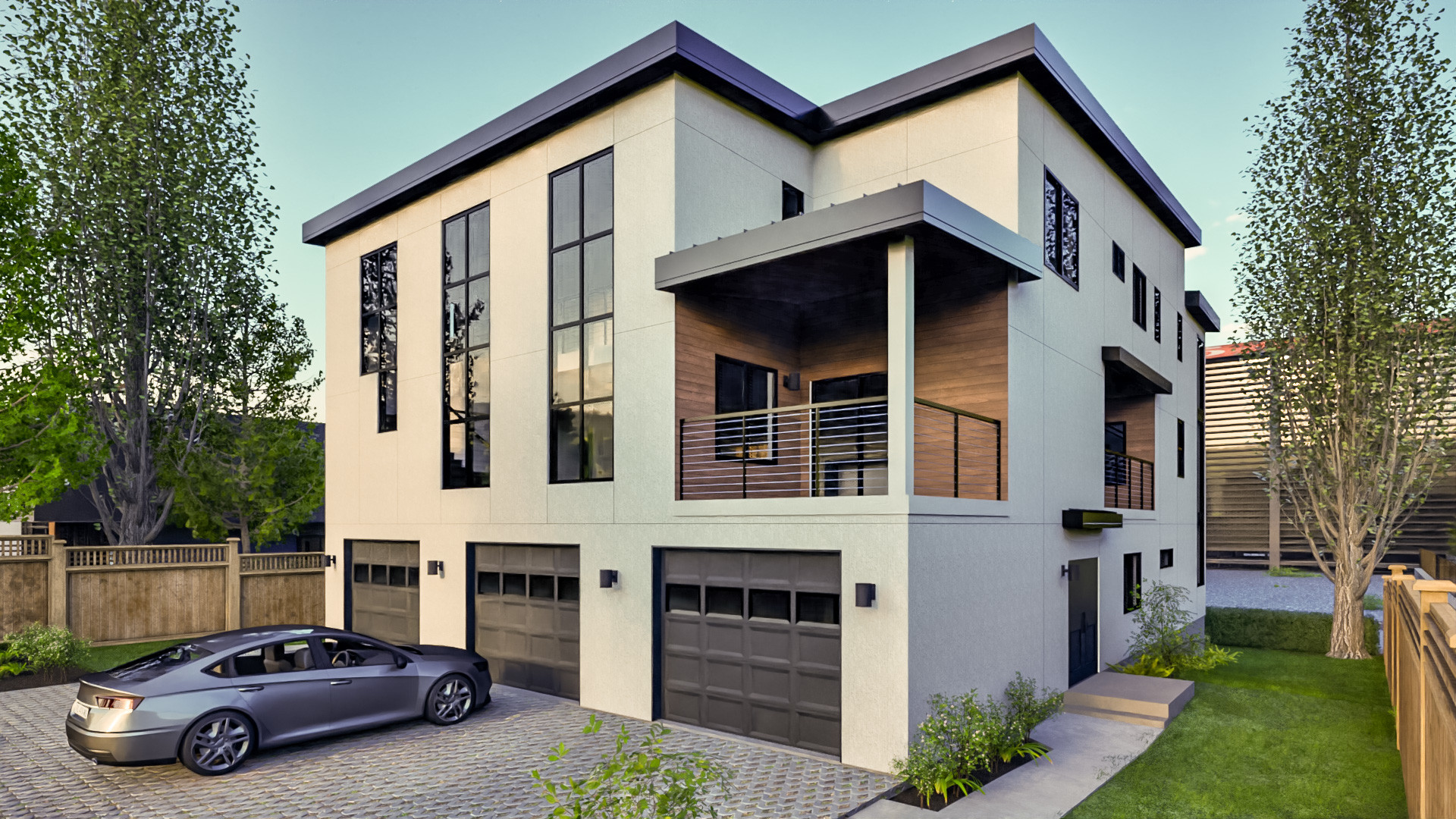

Modern two-story house with beige panels, dark roof lines, wooden balcony accents, and large windows surrounded by fencing.
Aerial view of a modern two-story house with dark metal roofs, white walls, and a landscaped yard nearby.

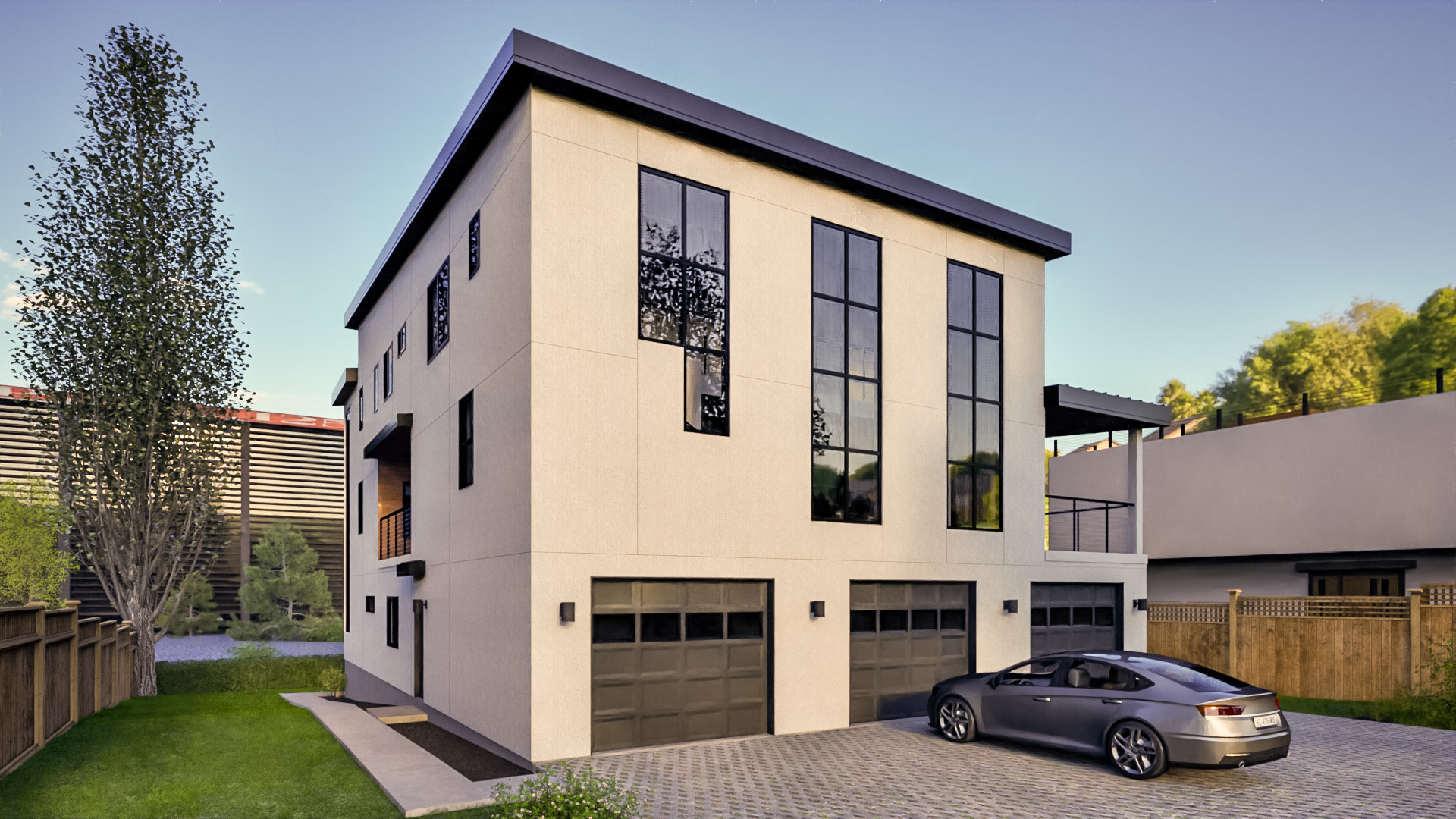

Modern beige, multi-story house with tall black-framed windows, a three-car garage, and a gray car in the driveway.
Modern two-story house with a grey garage door, driveway, and wooden balcony railings, surrounded by trees and a fenced yard

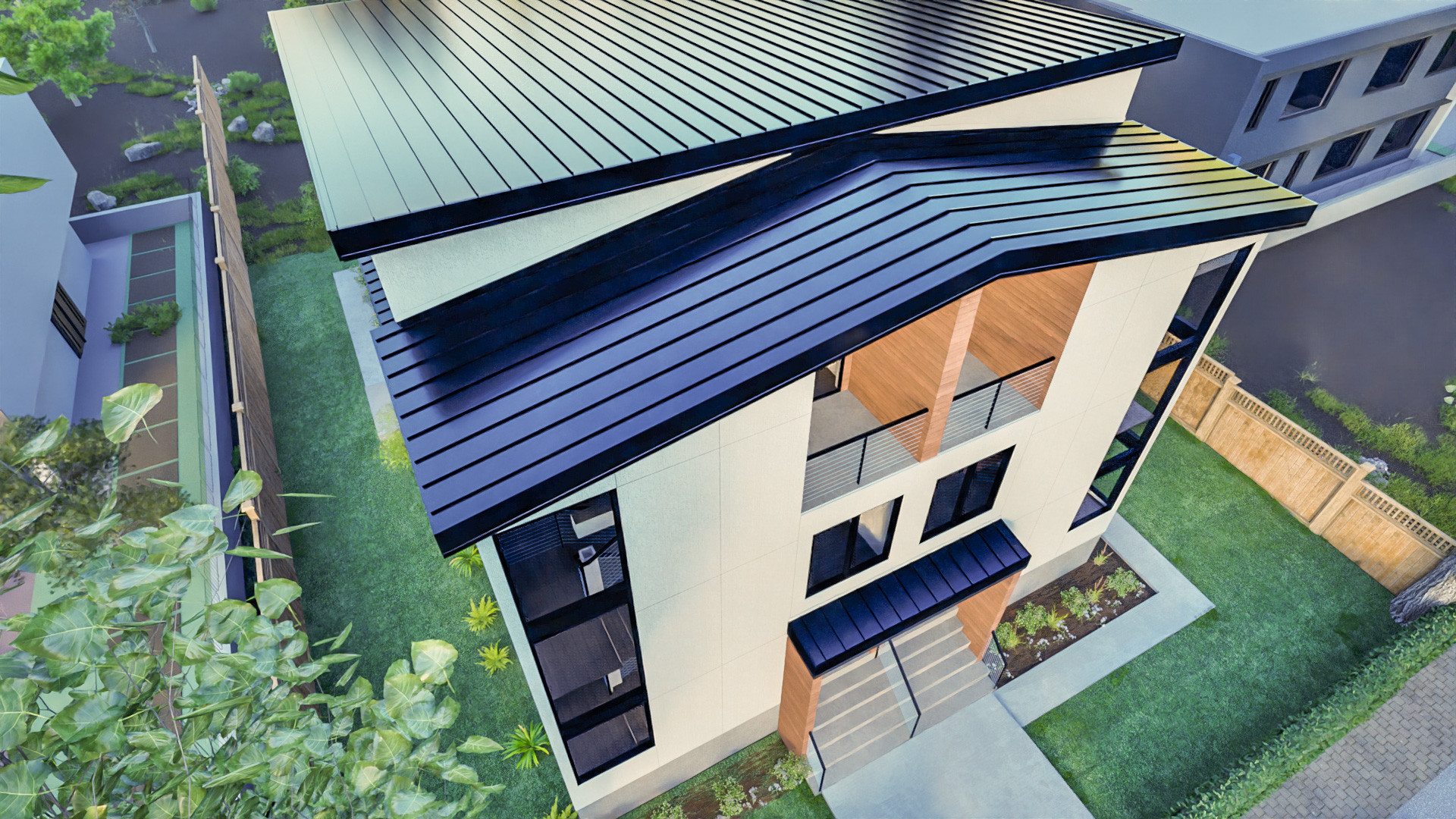

Aerial view of a modern beige multi-story house with black metal roof and large windows, surrounded by trees and a driveway.
Modern beige apartment building with multiple black-framed windows and a wood-clad balcony, set behind a wooden fence.

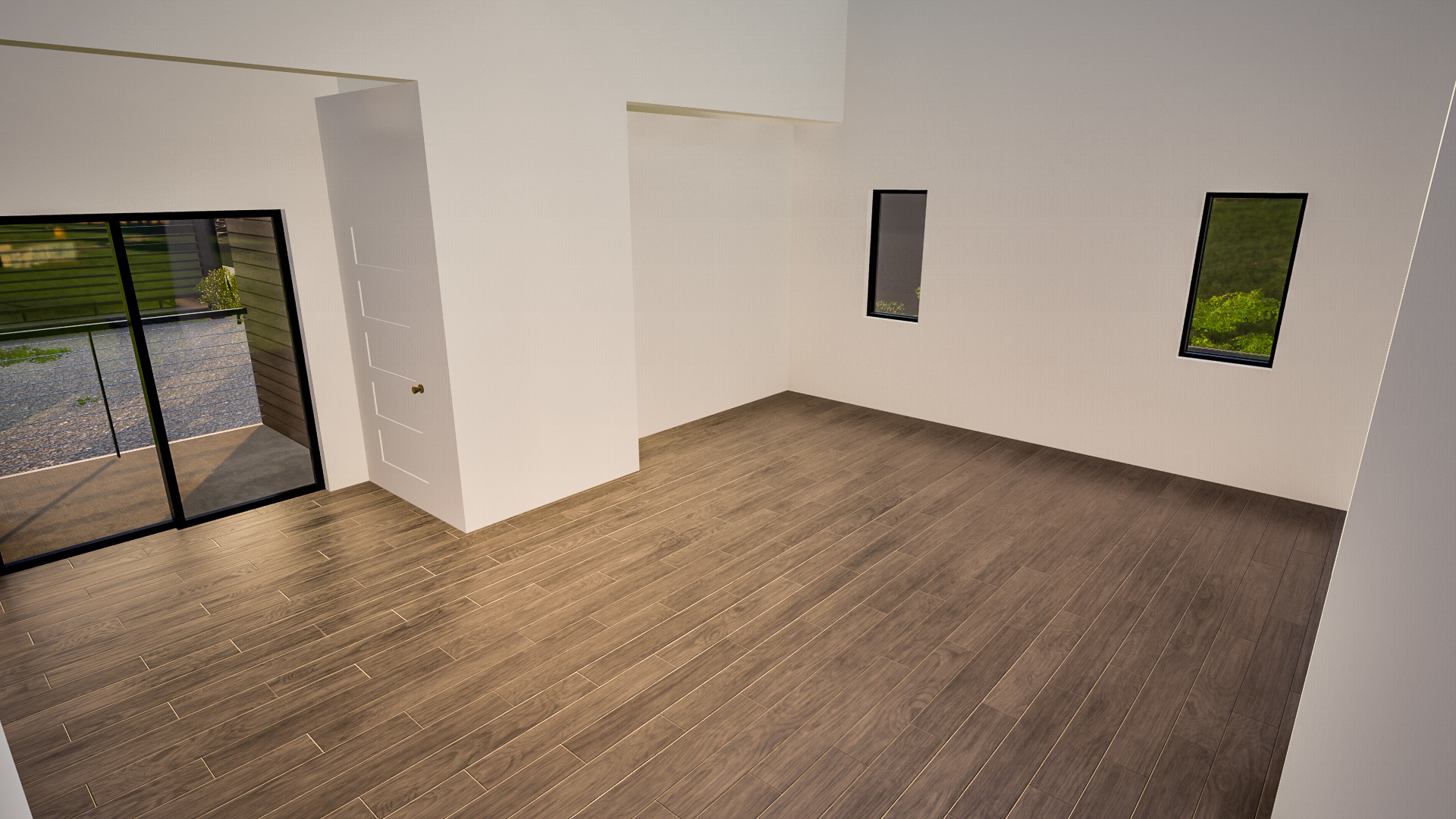

Empty modern room with white walls, dark wood-look flooring, a white door, and a sliding glass balcony door on the left.

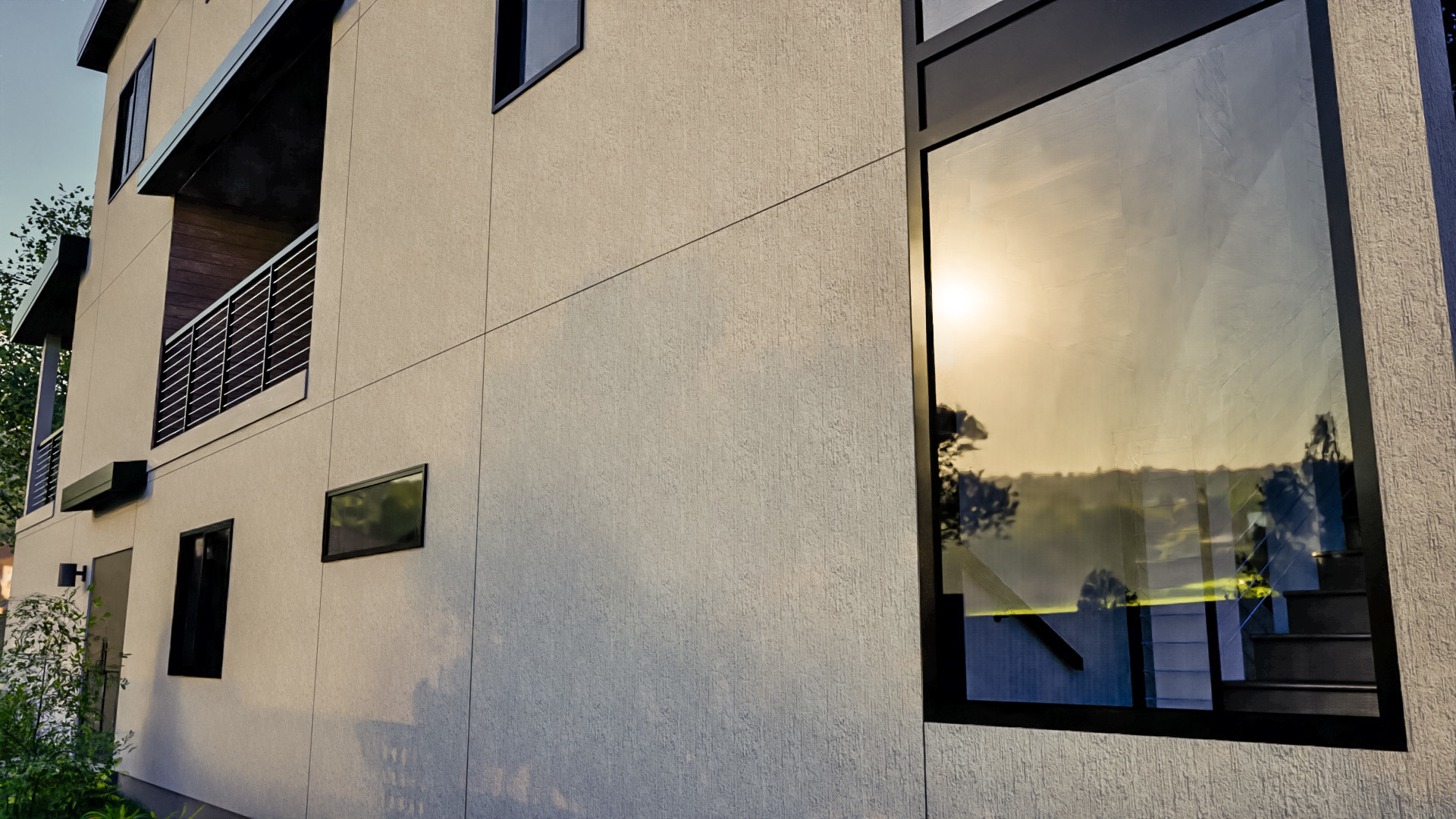

Facade of a modern beige building with large reflective glass window and metal balcony railing on the left side.
Modern kitchen with gray cabinets, blue-pattern tile backsplash, marble island with sink and brass faucet, open staircase in the background.

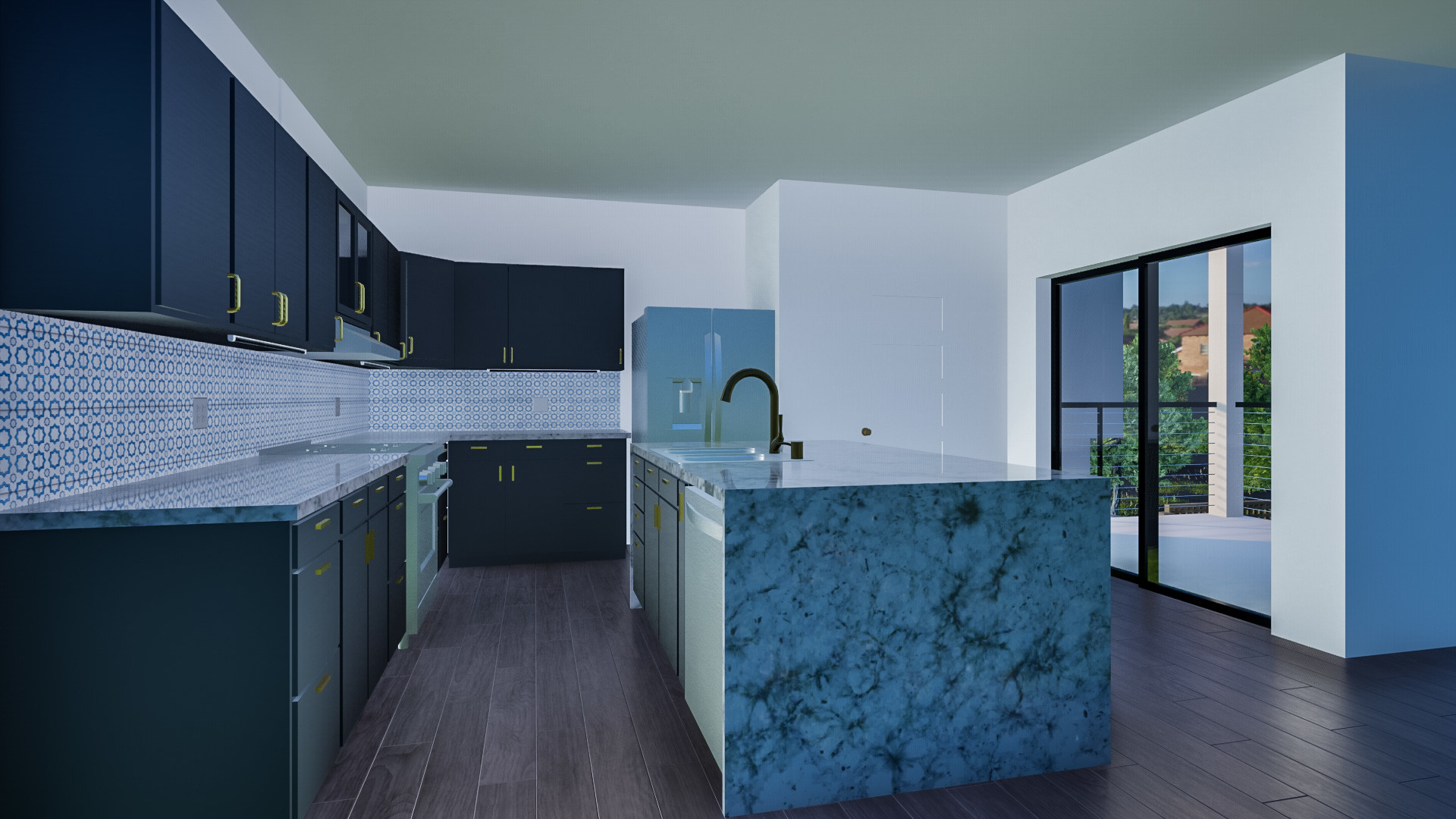

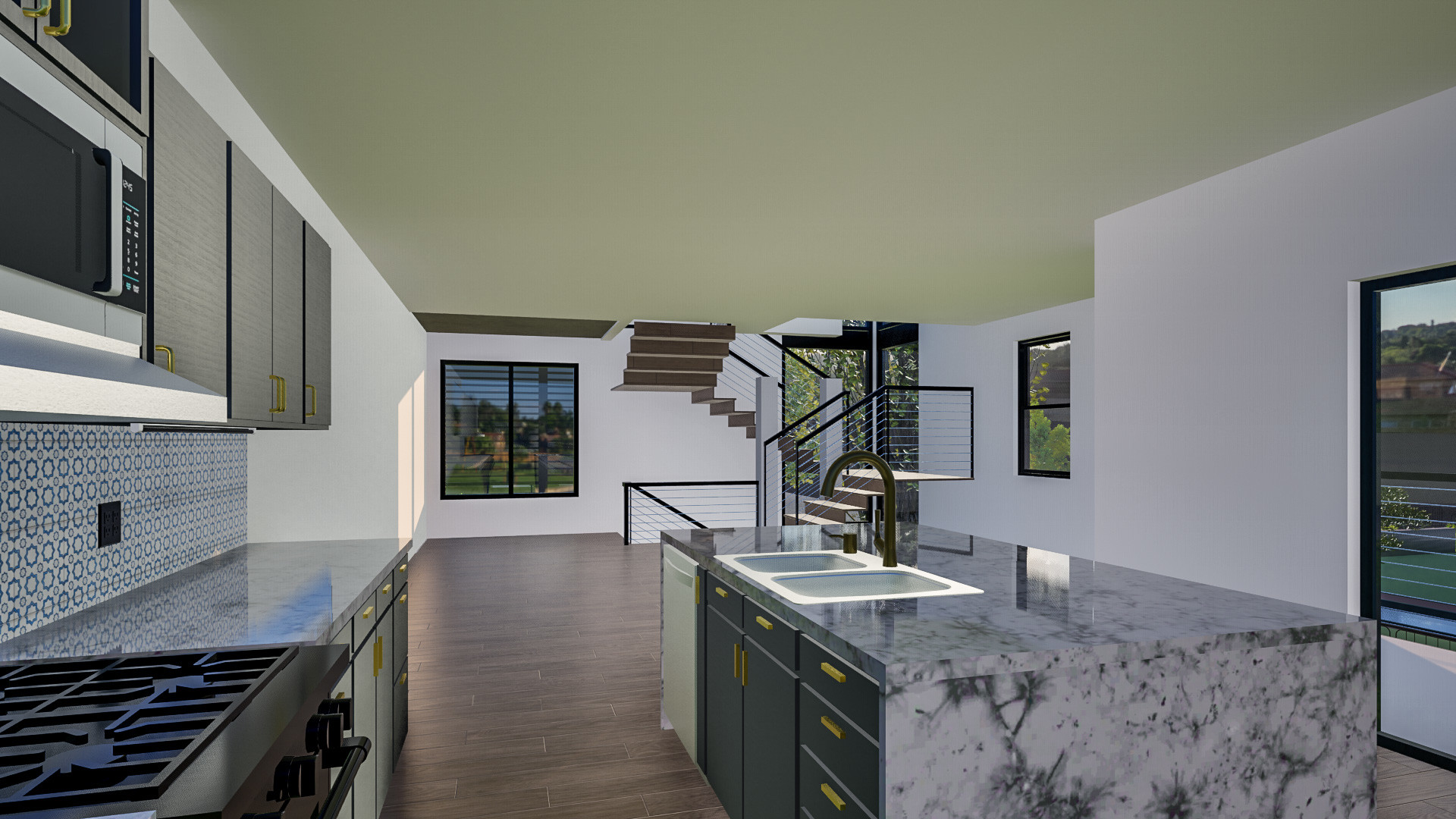

Modern kitchen interior with navy cabinets, brass hardware, blue patterned backsplash, marble countertops, and an island with a sink.

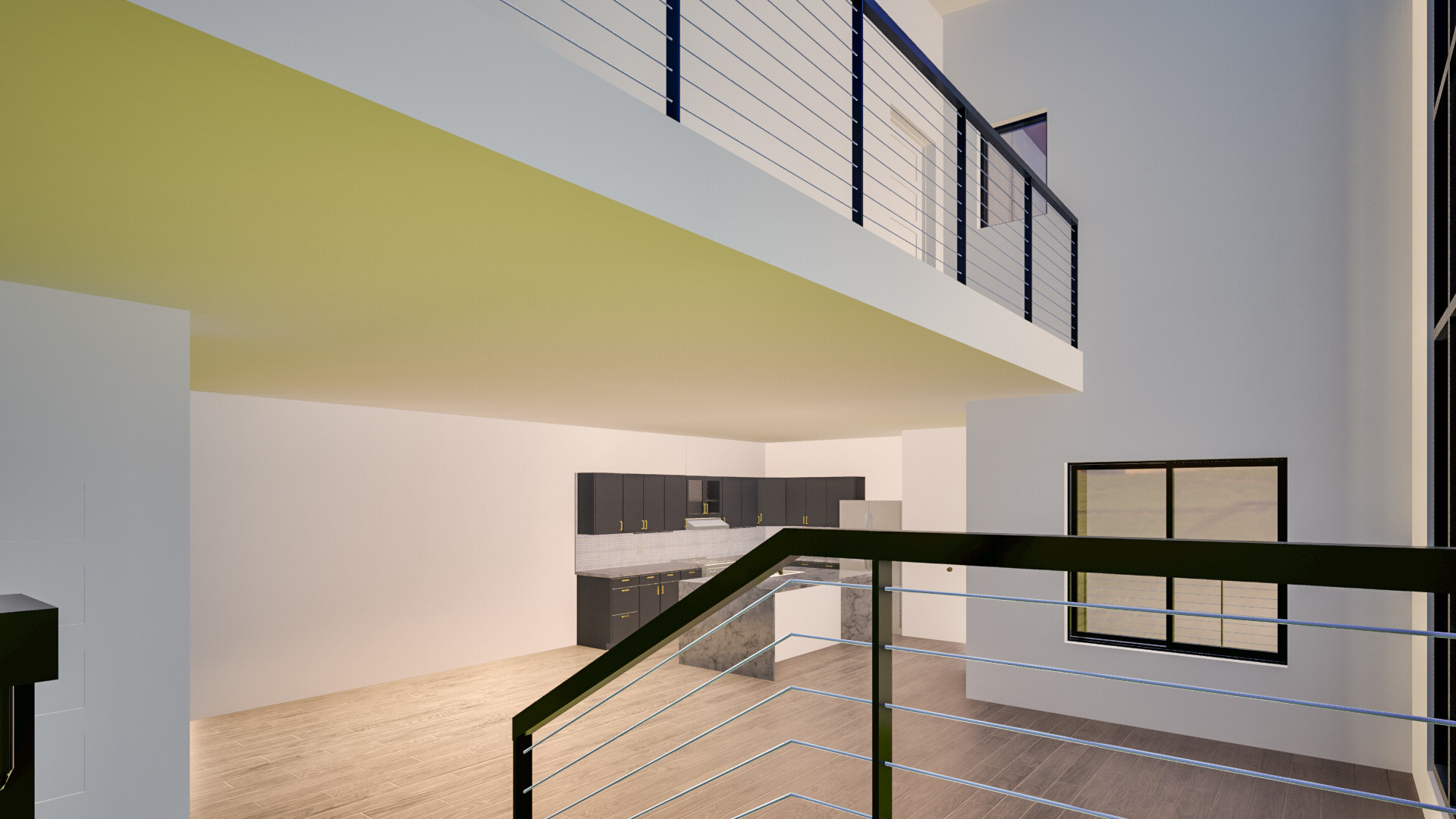

Open-concept interior with a mezzanine balcony and black cable railings; kitchen cabinets line the lower wall below.

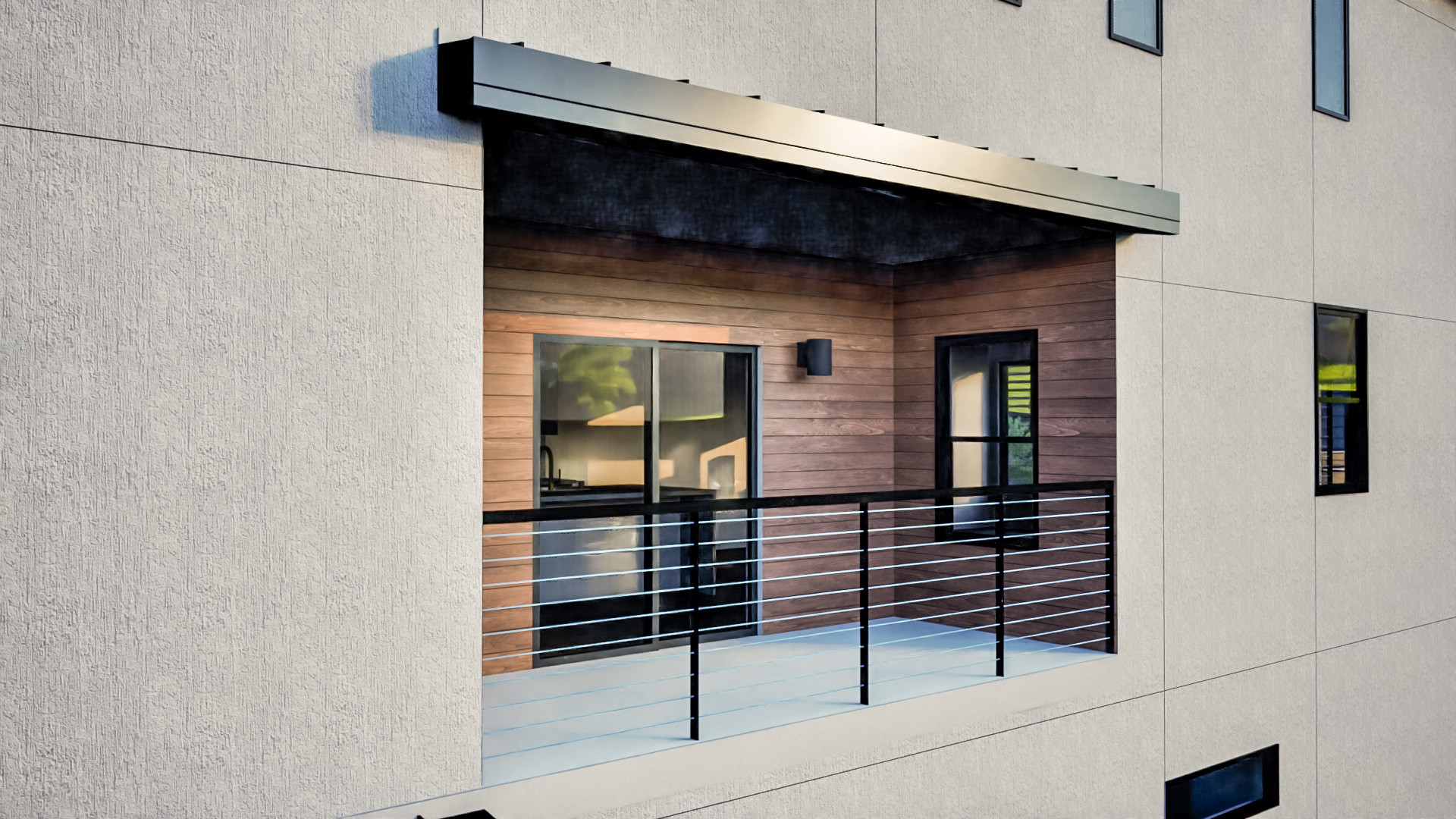

Exterior view of a modern apartment with a wood-clad balcony, glass sliding door, and black metal railing.

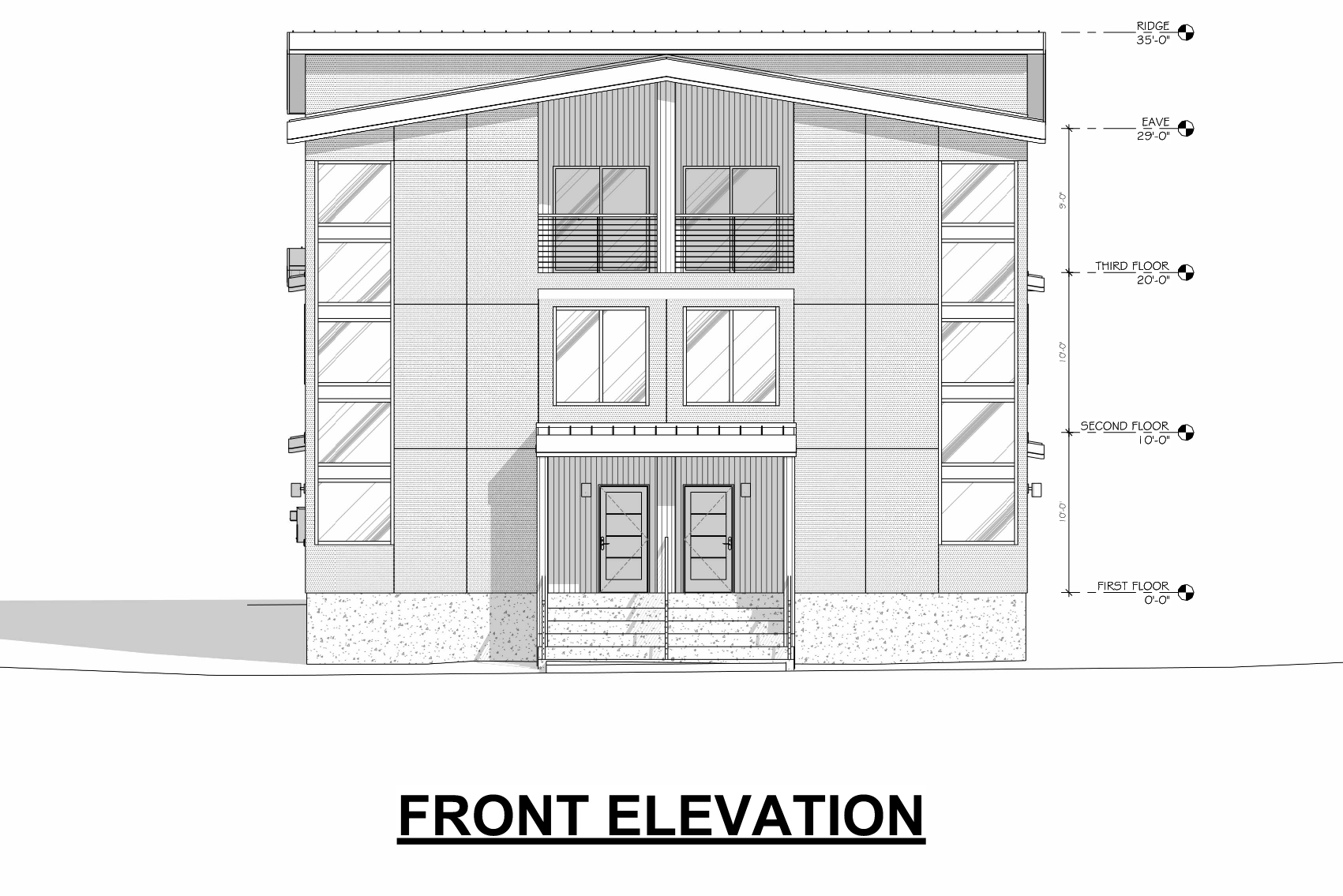

Front elevation view of a modern three-story building with a central gabled roof, large windows, balcony railings, and double entry doors below.
Right elevation of a brick educational building on a sloped site, showing multiple rectangular windows, a central balcony with railing, and a mix of flat and shed rooflines.

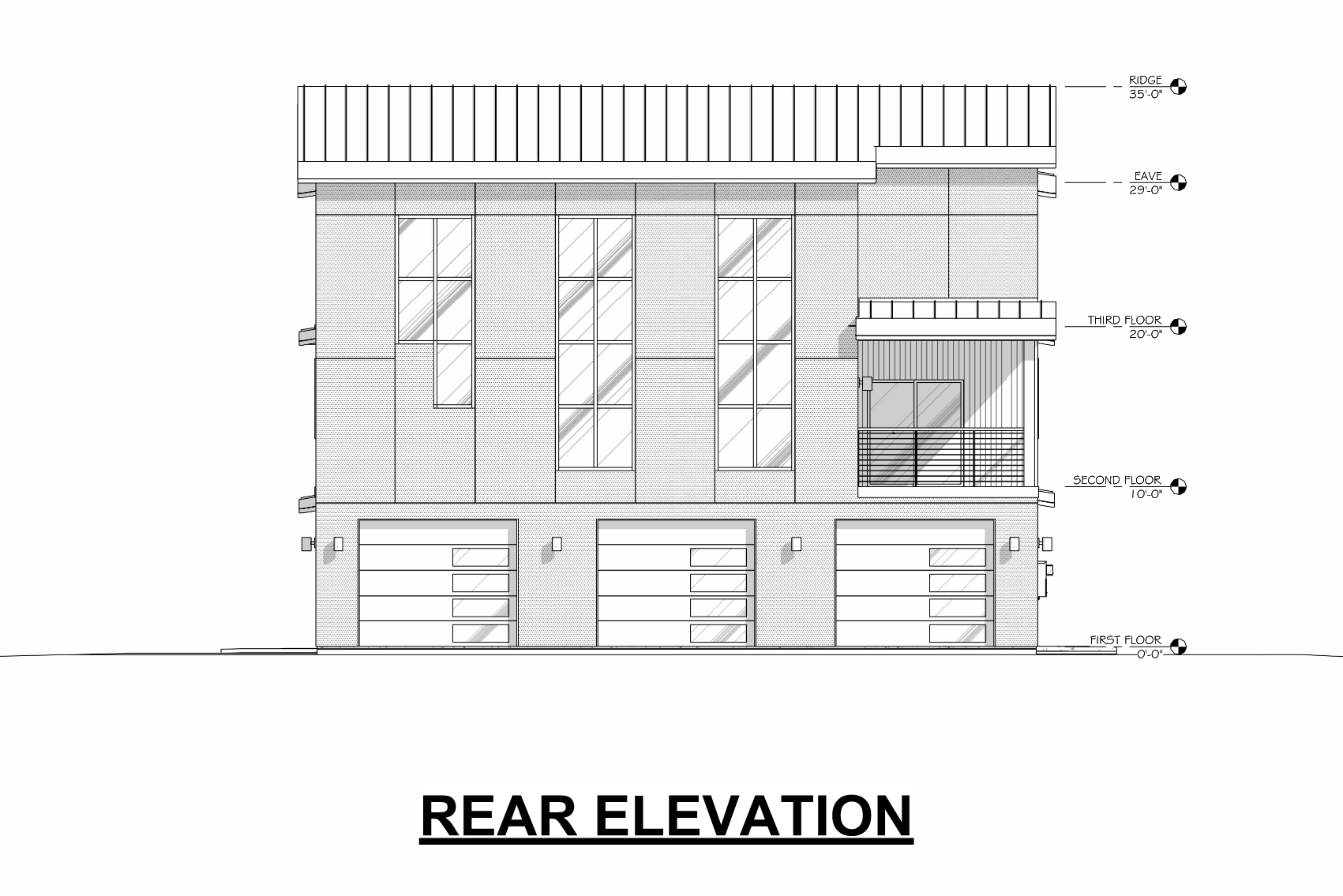

Architectural rear elevation of a multi-story brick building with large vertical windows and garage bays at ground level

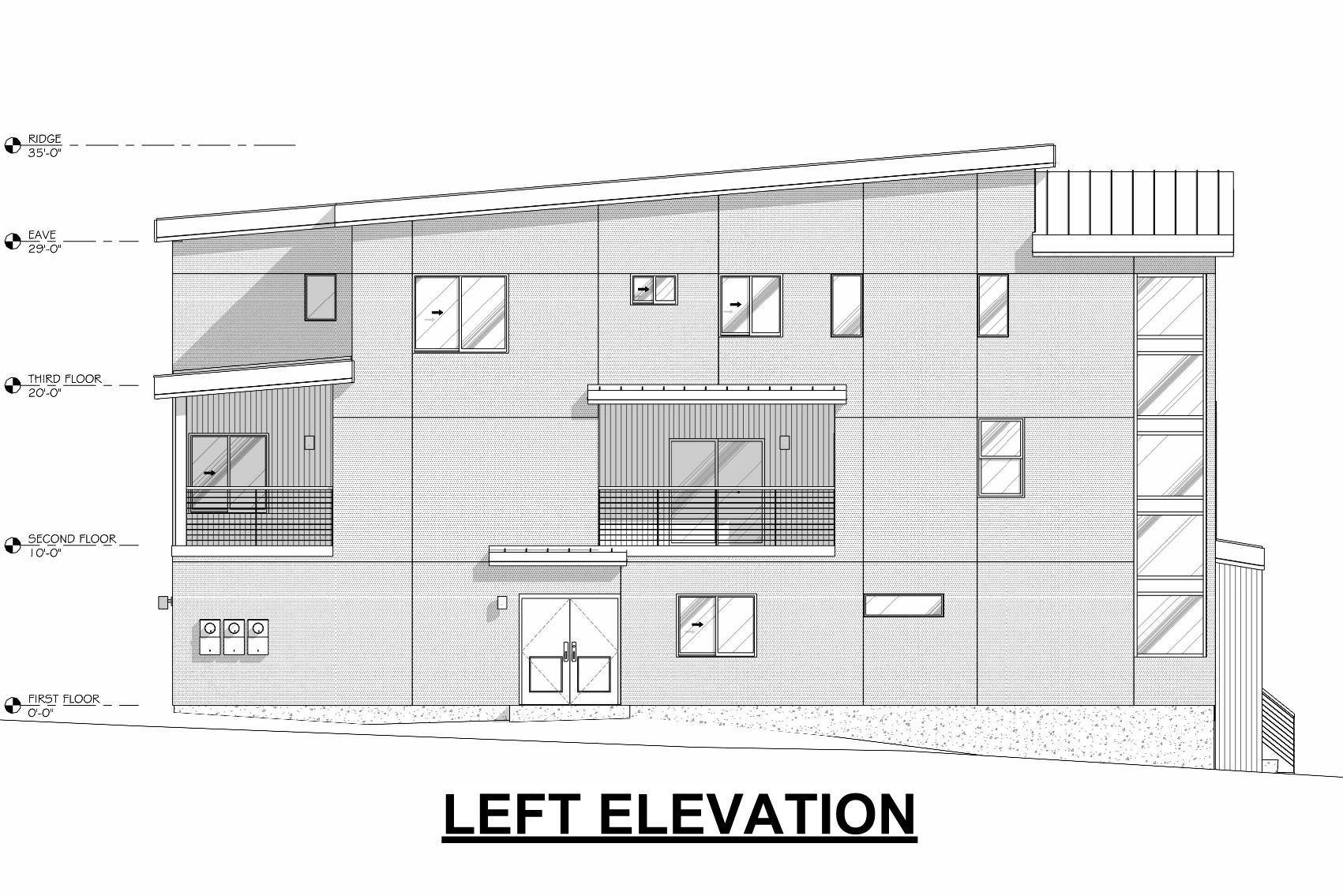

Left elevation architectural drawing of a multi-story brick building showing windows, doors, balconies, and a sloped roof line across the facade

Plan 16021 is a contemporary three-story triplex designed for urban infill developments, luxury rental properties, and multi-family communities. Three separate residences feature open-concept living, private balconies, attached garages, and a dramatic glass stairwell that brings natural light into every level.

Contemporary Triplex Designed for Modern Urban Living

Plan 16021 reimagines multi-family housing with clean modern architecture, flexible living spaces, and striking architectural details. Designed as a luxury three-story triplex, each residence offers private living while sharing a cohesive contemporary exterior.

The dramatic glass stairwell creates an impressive entrance filled with natural light, while spacious kitchens, private balconies, attached garages, and thoughtfully separated living spaces make this design equally suited for rental properties, urban developments, and owner-occupied investment homes.

Whether you're building a luxury rental community or maximizing a narrow urban lot, Plan 16021 combines modern design with practical functionality.

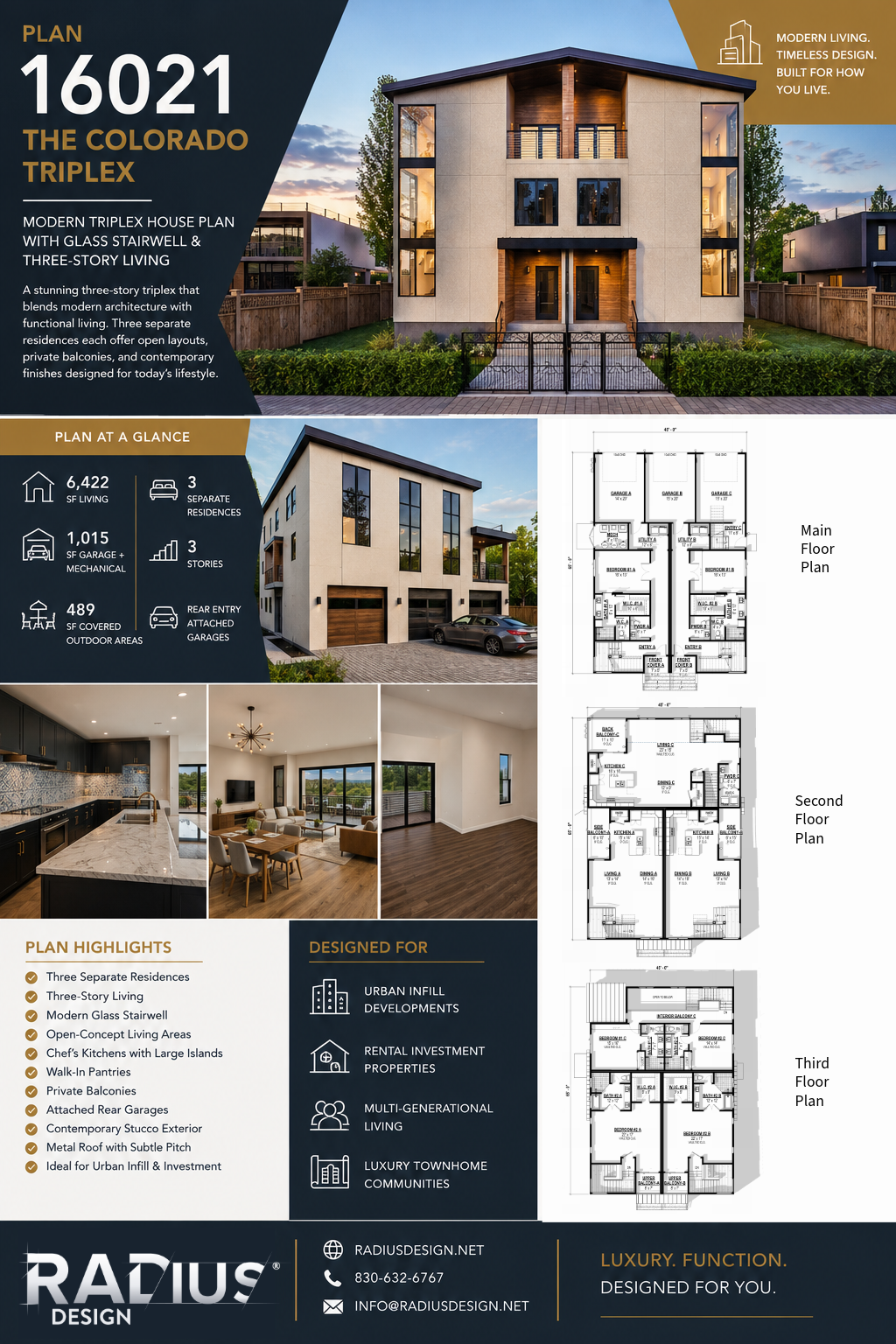

Download Flyer

Plan Highlights

  • Three separate residences
  • 6,422 sq ft total living area
  • Three-story design
  • Glass-enclosed stair tower
  • Modern stucco exterior
  • Standing seam metal roof
  • Rear-entry attached garages
  • Open-concept kitchens
  • Large kitchen islands
  • Walk-in pantries
  • Private balconies
  • Contemporary interior layouts
  • Designed for urban infill developments
  • Excellent rental investment opportunity
DIGITAL PLAN SET

Includes complete design drawings for one build.

  • Instant digital delivery
  • One-build license included
  • Modifications available

$3,215.00

Floor Plans

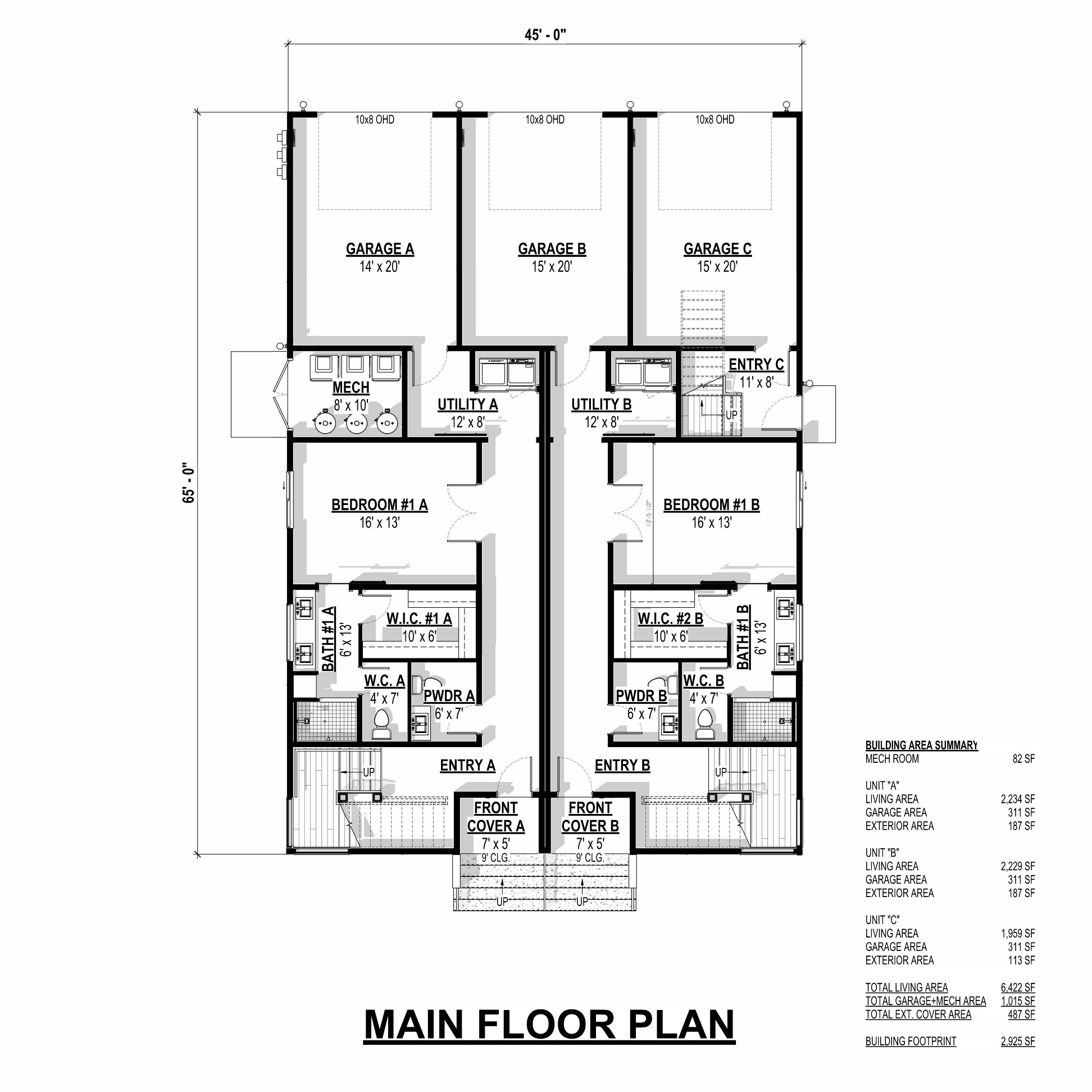

Main floor plan showing three garages (Garage A, B, C) and adjacent living spaces with labeled rooms and measurements.

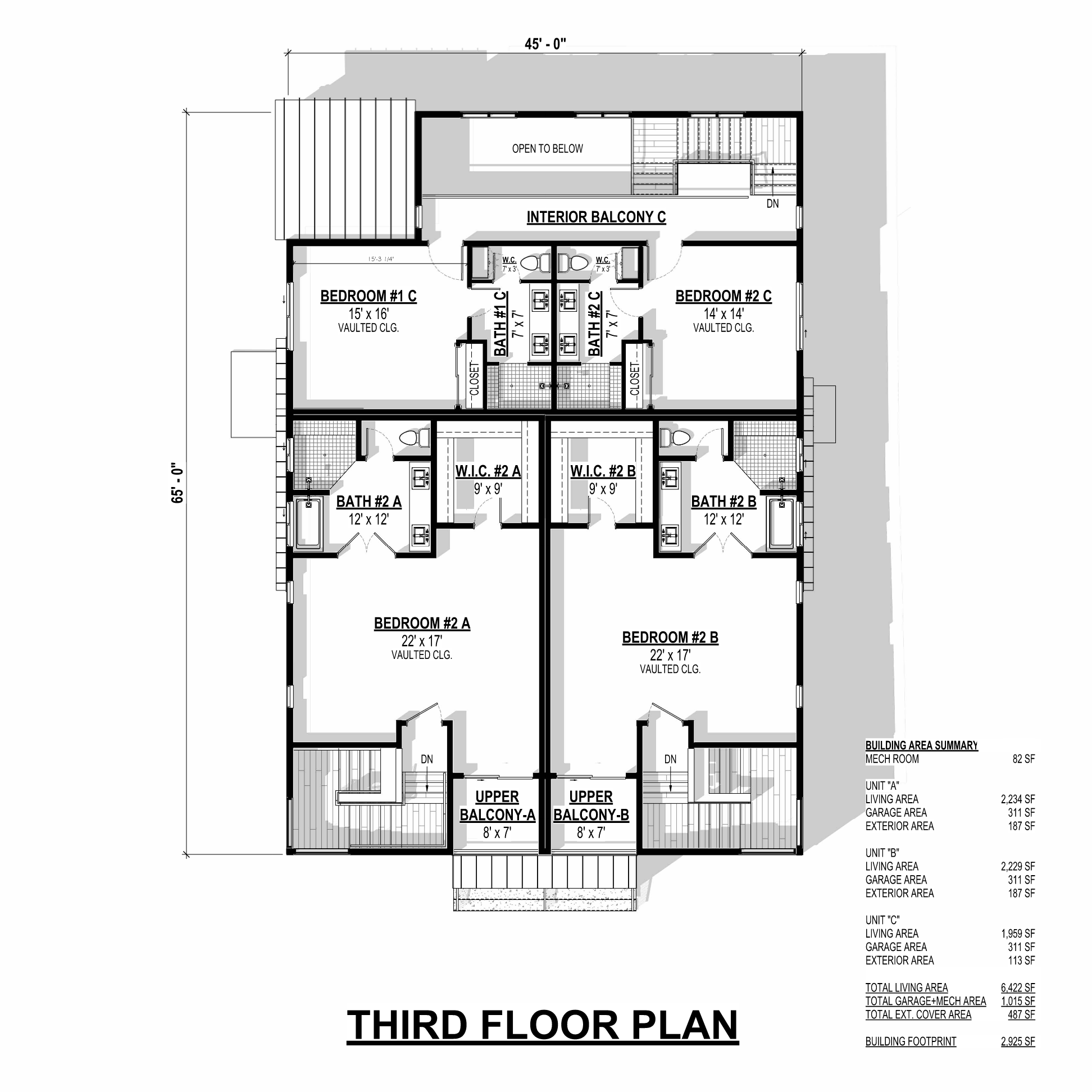

Third-floor architectural plan showing bedrooms, baths, closets, and balconies, including stairways and open-to-below areas.

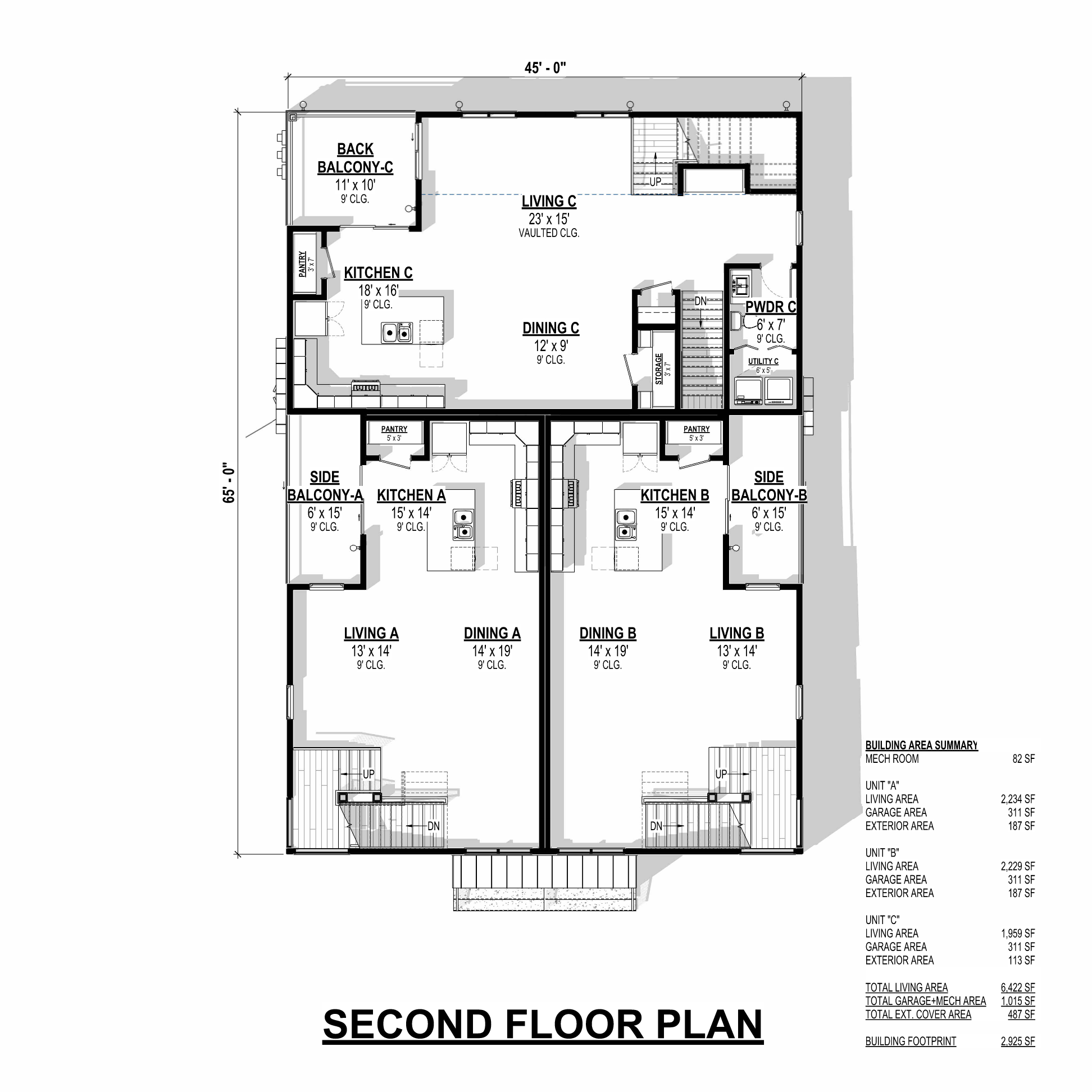

Second floor plan showing labeled rooms: Living A and B, Dining A and B, Kitchen A and B, and balconies.
What's Included
  • Coversheet
  • Floor plans
  • Roof plan
  • Exterior elevations
  • Building sections
  • Ceiling plan
  • Electrical plan
  • Interior elevations
  • Component schedule
  • Design details
Optional Add Ons
Contact Us to Add Optional Upgrades:

☐ Reverse Layout – $295
☐ CAD Files – $250
☐ Unlimited Build License – $1,500

What's Not Included
  • Structural foundation
  • Framing plans
  • Site plan (lot-specific)
  • Structural engineering (required per location)
  • Mechanical / plumbing / energy plans
  • Local code or HOA adjustments

Designed in Texas

Designed by a Texas-based residential design team specializing in practical, build-ready homes.
